The suspended scaffold can be manoeuvred with little effort due to smooth plastic rollers.

PERI UP Flex Suspended Scaffolding

Easy to move suspended scaffold

PERI UP Flex Suspended Scaffold is used for temporary and safe working platforms. The platforms are constructed combining the PERI UP Flex scaffold with UFS 20 Trolley elements to provide a suspended, movable solution.

The Trolley can be installed to the underside of oil platforms or on bridges to I-shaped steel profiles for example. This enables large working areas to be accessed quickly and cheaply, with loads up to 19.7 kN and facilitates safe manoeuvring of whole platforms.


PERI UP Flex Suspended Scaffolding in action

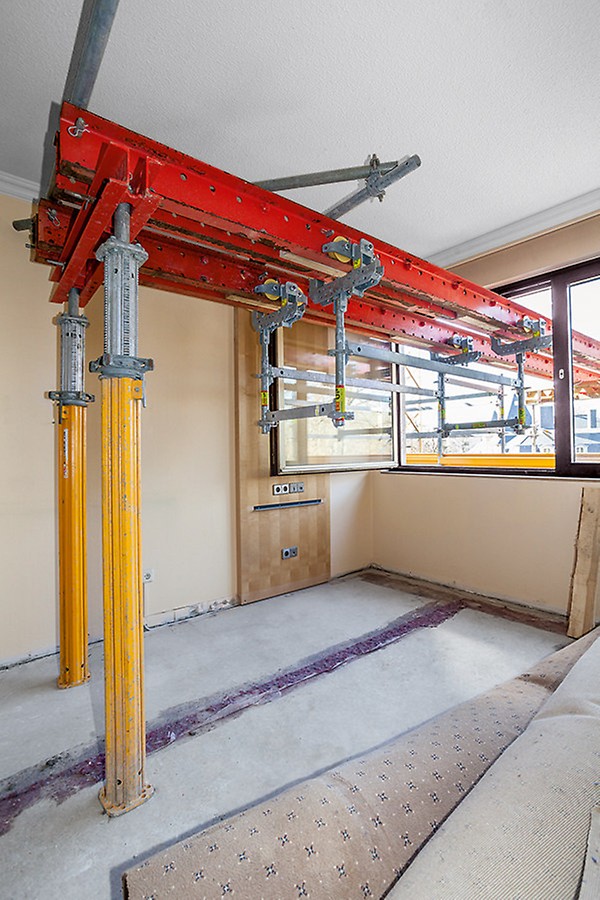

  • The Trolley UFS 20 can also be used on PERI RCS Rails – as shown here for transporting materials in a refurbishment project.
    Fast & versatile

    In any configuration, PERI UP is one the fastest scaffolding systems to work with and in combination with our engineering and shoring systems capable of solving any on-site challenge.  All based on a 25cm grid, all geometries and spaces can be catered for

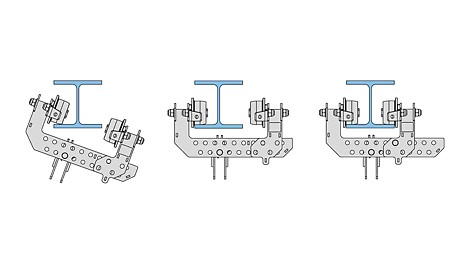

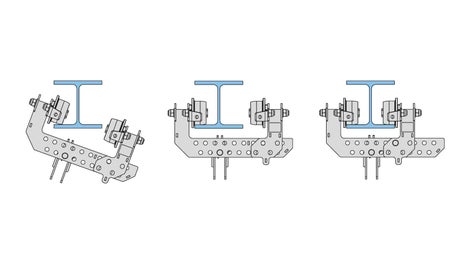

  • The movable arm of the Trolley can be pushed aside for installation. The spacing of the rollers can be adapted to the steel girder and they are secured with bolts.
    Dependable and cost-saving

    Whole platforms can be suspended and manoeuvred easily and smoothly.  The highest levels of safety provide confidence when working at height

Product Data Sheet
