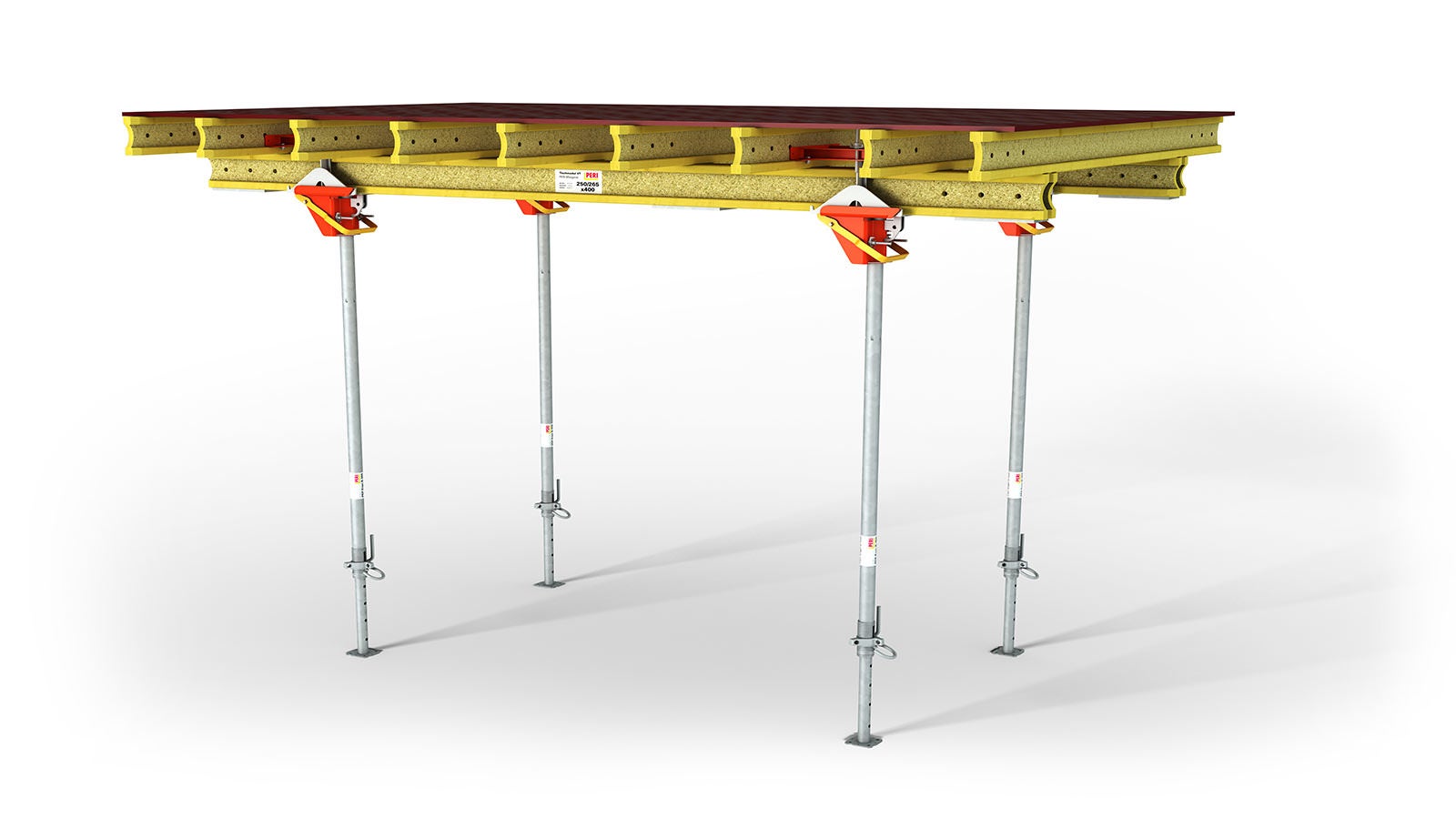

TABLE MODULE VT Slab Table

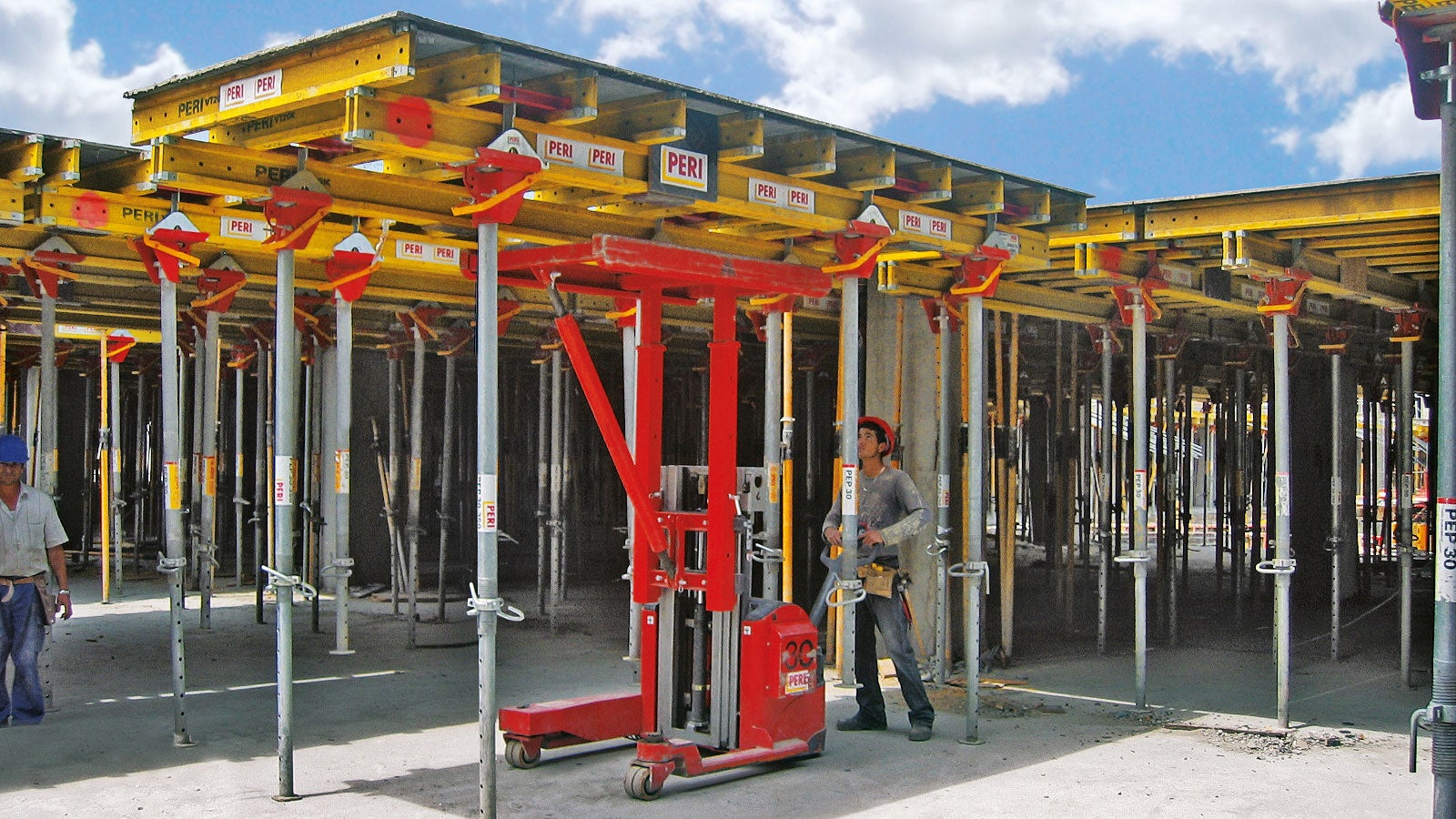

Large forming areas with one crane lift
The VT table modules are available in 4 standard sizes, and particularly for small numbers of applications, they are a cost-effective solution.
1
/
2

Overview

TABLE MODULES have been designed particularly for small numbers of applications. They are completely pre-assembled and arrive at the jobsite ready for use. Four standard sizes are available, the guardrail is firmly mounted in case of cantilevered modules.

Complete
Completely pre-assembled in 4 standard sizes

Expandable
The 5 m table with integrated table swivel head can be used as cantilevered edge table

Convenient
Foldable props for moving under beams

Technical Details

  • pre-assembled slab tables with lengths of 4.00 m or 5.00 m and widths of 2.15 m or 2.65 m respectively
  • slab thicknesses up to 50 cm with only 4 props, thicker slabs with additional support
  • can be used for a clearance height of up to 5.00 m
  • can also be used as cantilevered edge table with bracing
  • fast moving from floor to floor in horizontal position with transportation forks

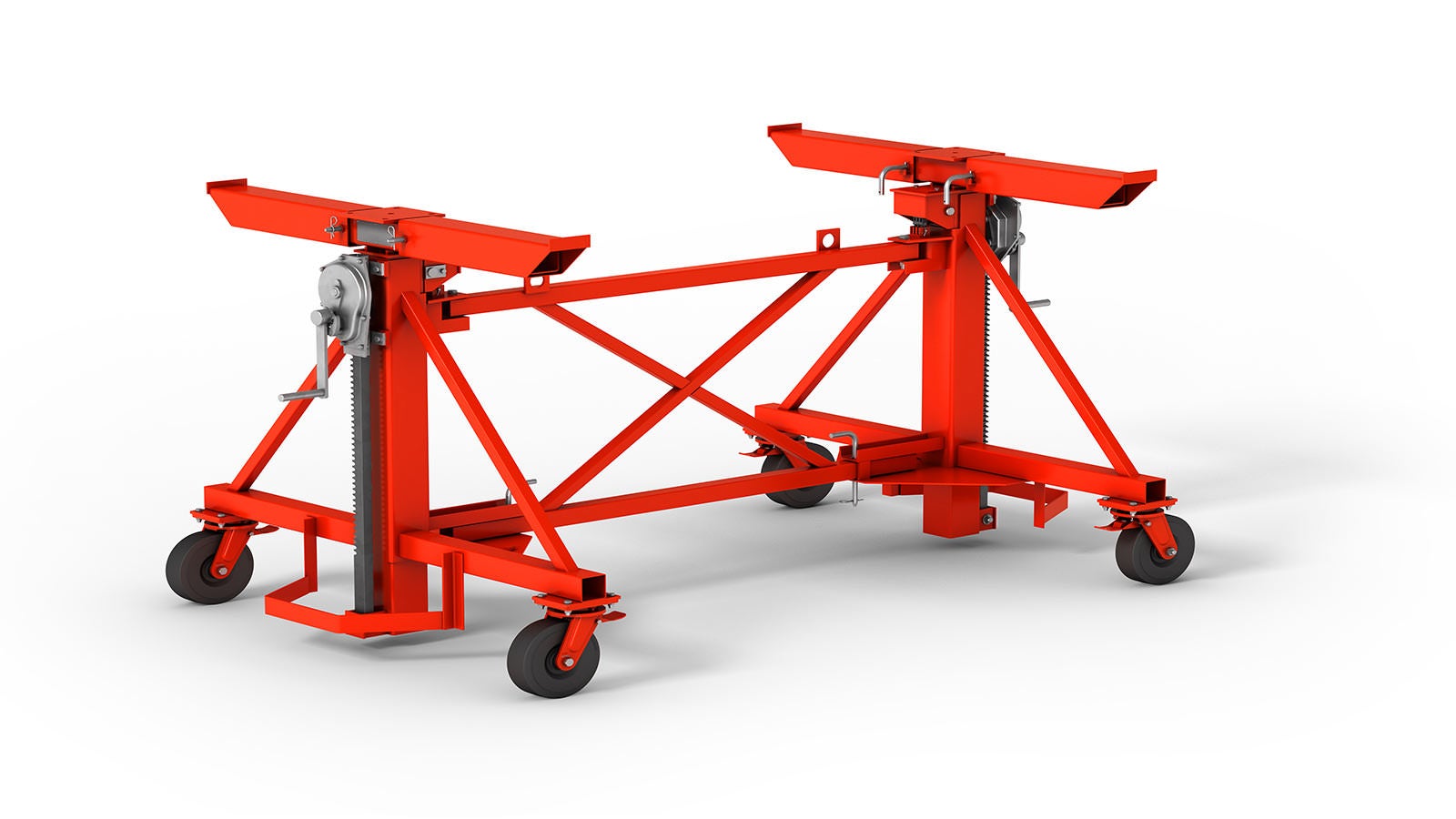

  • comfortable transportation with trolley, table lift or transportation wheel on the shoring
  • can be used with swivel head, or as an alternative with the cost-effective, immobile TK table head
