VARIO GT 24 Column Formwork

All heights, all cross-sections, regardless whether square or rectangular-shaped
Amaia Esperanza Fidela Sucat, a modern and contemporary inspired mid-rise residential project with support of retail shop set againts the tranquil surroundings of Parañaque City. Breath life into spaciously designed units ranging from Studio, Deluxe and Premier. 9 towers, composed of 8 floors with 1,632 total number of units.
1
/
2

Overview

VARIO GT 24 is always a project-specific solution consisting of formwork girders, steel walers and any selected formlining. It can be adapted to suit every cross-section, concreting height and required fresh concrete pressure. Architectural concrete requirements can also be optimally fulfilled with VARIO GT 24.

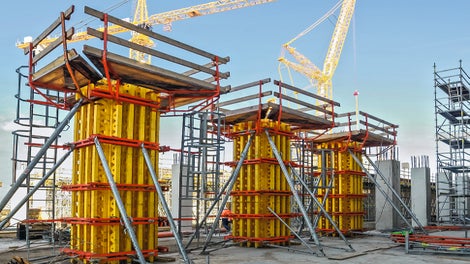

Continuously adaptable
to match rectangular and square column cross-sections of all sizes

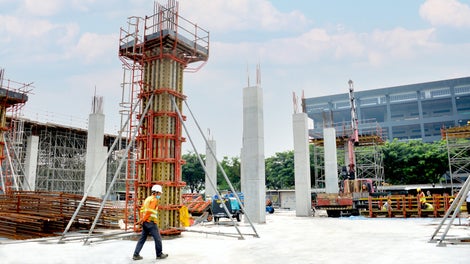

For architectural concrete surfaces
through project-specific constructions with any type of formlining

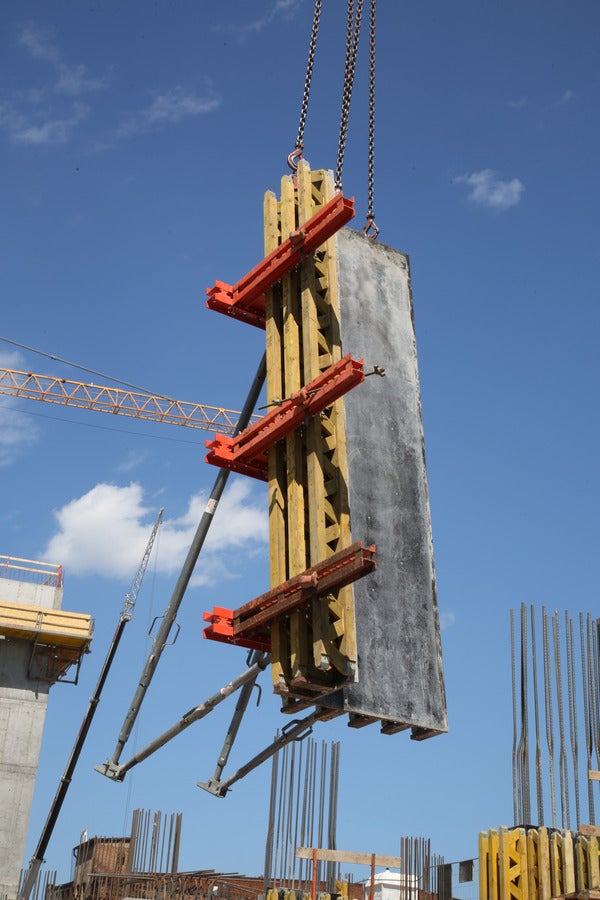

For high concrete pressures
through individual arrangements of formwork girders and steel walers

Technical Details

  • For square or rectangular cross-sections continuously from 20 cm x 20 cm to maximum 120 cm x 80 cm
  • Project-specifific adapted solution
  • Maximum permissible fresh concrete pressure 100 kN/m² in the standard confifi guration; planned as required for higher pressure
  • With working and concreting platforms as well as access ladders
